GLOBAL GOLD & OIL - EO/IR CAMERA
LONG-RANGE EO/IR CAMERA FOR CRITICAL SURVEILLANCE OPERATIONS
GLOBAL GOLD & OIL, in association with SUNABE CONSULTING LLC, presents advanced surveillance and imaging solutions designed to meet the highest standards in industrial, security, and tactical operations.
This long-range EO/IR stabilized camera system delivers cutting-edge performance for critical missions, enabling reliable monitoring, inspection, and situational awareness across air, land, and maritime environments.

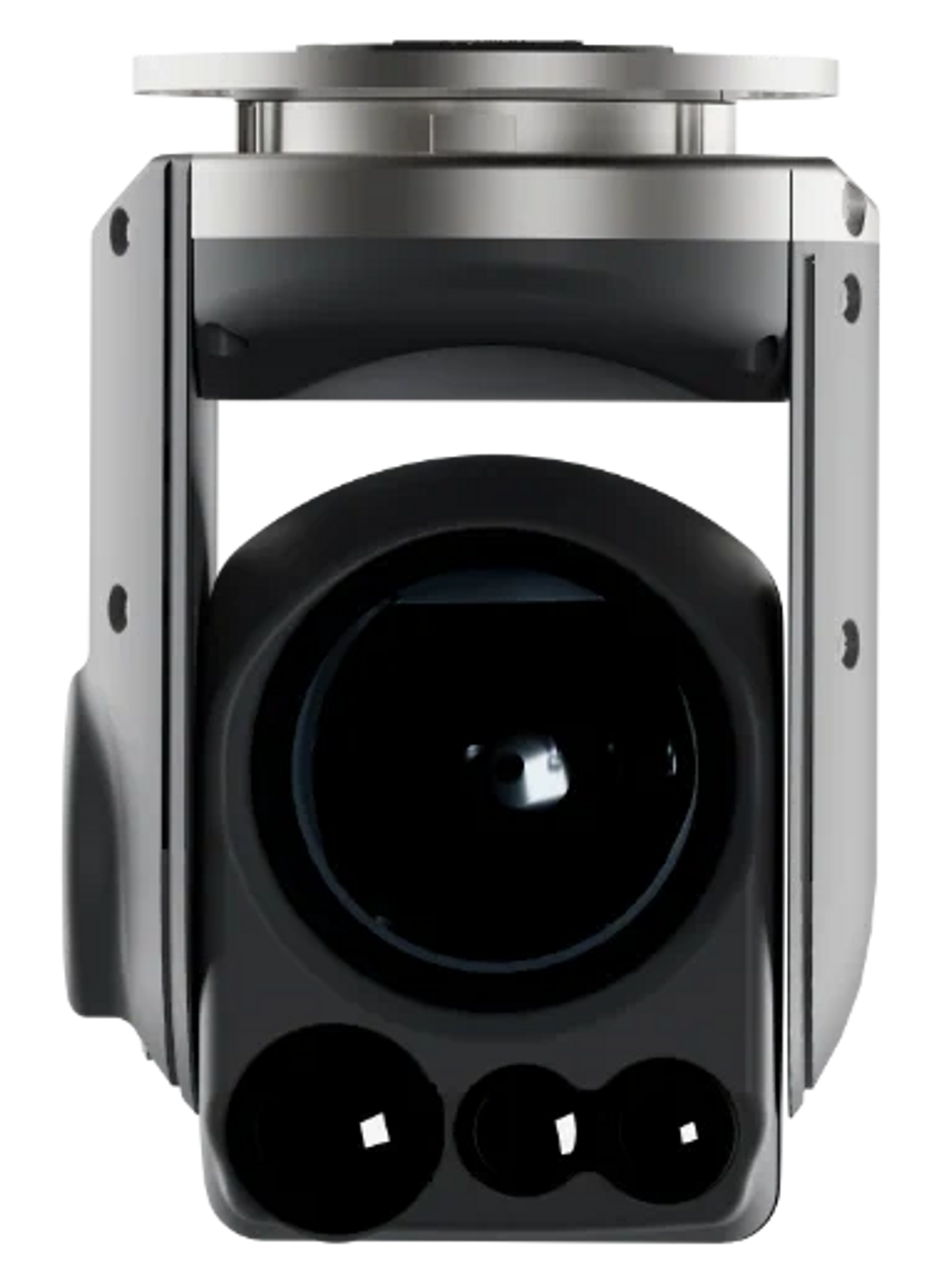

EO/IR CAMERA
OVERVIEW
High-performance stabilized camera system featuring dual electro-optical (EO) and infrared (IR) sensors, designed for surveillance, inspection, reconnaissance, and tactical operations.
It delivers advanced long-range observation capabilities by combining high optical zoom, precision stabilization, and day/night operation in a compact and lightweight form factor.
KEY FEATURES
- UP TO 80X TOTAL ZOOM
40x optical + 2x digital (visible channel) - UP TO 8X DIGITAL ZOOM (THERMAL CHANNEL)
- LONG-RANGE DETECTION, RECOGNITION, AND TRACKING
- DUAL EO/IR SENSOR SYSTEM (DAY & NIGHT OPERATION)
- HIGH-PRECISION STABILIZATION (<50 µRAD)
- CONTINUOUS 360° ROTATION (CONFIGURABLE)
- TARGET TRACKING AND GEO-LOCATION CAPABILITIES
- EFFECTIVE OPERATION IN DEGRADED ENVIRONMENTS(darkness, smoke, haze, dust)
TECHNICAL SPECIFICATIONS
SIZE & WEIGHT
- Dimensions: approx. 90 × 120 × 196 mm
- Weight: approx. 640 g
EO (VISIBLE) SENSOR
- Resolution:
1280 × 720 up to 1920 × 1080
- Spectral range: 400–700 nm
- Zoom:
40x optical + 2x digital (up to 80x total)
- Field of View (HFOV):
60° (wide) to ~1.5° (narrow)
THERMAL (IR) SENSOR
- Type: Uncooled LWIR (8–14 µm)
- Resolution: 1280 × 720
- Zoom: Up to 8x digital
- Capabilities:
- Operation in complete darkness
- Visibility through smoke, fog, and dust
GIMBAL & STABILIZATION
- Pitch: approx. -45° to +80°
- Yaw/Roll: up to ±180° (optional continuous 360°)
- Stabilization: High-precision image stabilization for dynamic environments
INTERFACES & POWER
- Power input: 15–32 VDC
- Interfaces:
- Video: Micro-HDMI
- Control: RS-232
OPERATING CONDITIONS
- Temperature range: -20°C to +55°C
ADVANCED CAPABILITIES
- AUTOMATIC TARGET TRACKING
- TARGET GEO-LOCATION
- REAL-TIME VIDEO STREAMING AND RECORDING
- LONG-RANGE IDENTIFICATION AND SITUATIONAL AWARENESS
- INTEGRATION WITH UAVS, GROUND, AND MARITIME PLATFORMS
APPLICATIONS
- Security and surveillance
- Oil & gas and industrial inspection
- Perimeter monitoring
- Search and rescue
- Tactical and defense operations
- Border control
KEY ADVANTAGES
- ✔ EXCELLENT PERFORMANCE-TO-WEIGHT RATIO
- ✔ SUPERIOR LONG-RANGE OBSERVATION CAPABILITY
- ✔ RELIABLE 24/7 DAY & NIGHT OPERATION
- ✔ EASY INTEGRATION ACROSS MULTIPLE PLATFORMS
- ✔ STABLE PERFORMANCE IN MOTION AND HARSH CONDITIONS
