GLOBAL GOLD & OIL - DRONE VTOL 460H
HYBRID LONG-ENDURANCE VTOL UAV PLATFORM
GLOBAL GOLD & OIL provides advanced aerial drone systems designed for professional monitoring, security operations, and enhanced operational efficiency.

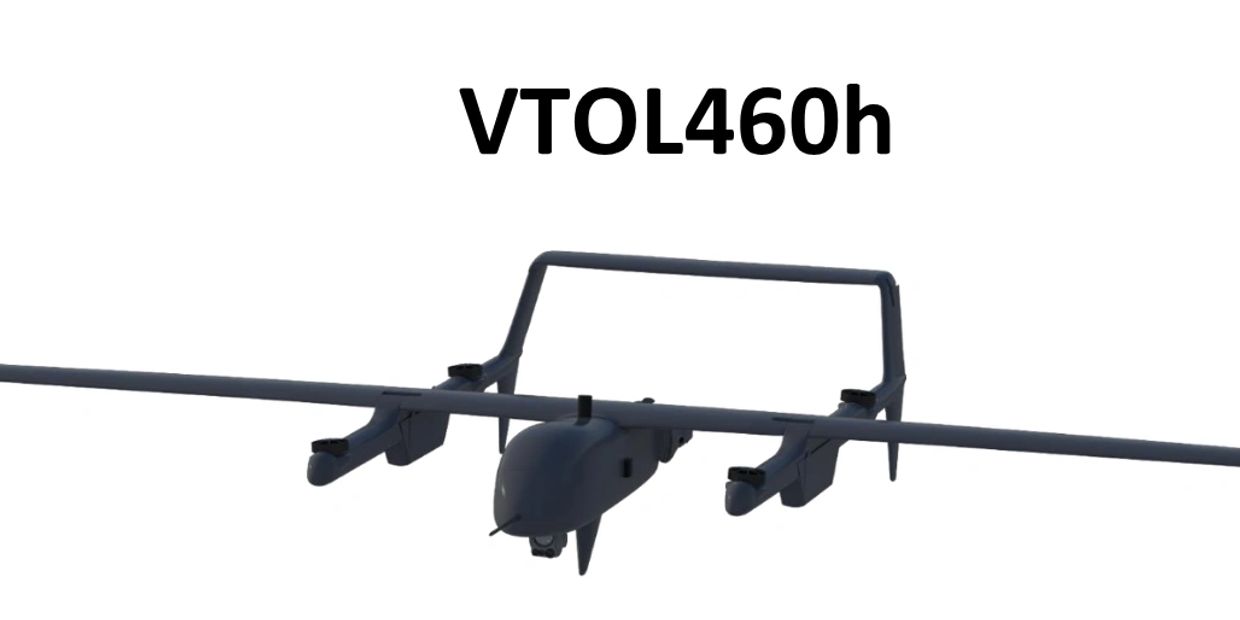

The VTOL 460his a fixed-wing unmanned aerial system with vertical takeoff and landing (VTOL) capability, allowing operations without the need for runways or aviation infrastructure. Its hybrid propulsion system (electric + combustion) enables extended flight endurance, making it ideal for surveillance, reconnaissance, patrol, and search missions.
TECHNICAL SPECIFICATIONS
STRUCTURE AND DIMENSIONS
- Maximum takeoff weight: 45 kg
- Wingspan: 4.6 m
- Length: 2.2 m
- Payload capacity: up to 5 kg
- Takeoff method: vertical (VTOL)
- Environmental protection: IP54
PERFORMANCE
- Endurance: over 10 hours
- Cruise speed: 18 – 30 m/s
- Optimal cruise speed: 21 – 22 m/s
- Maximum speed: 30 m/s
- Stall speed: 15 m/s
- Maximum operational altitude: 5000 m
- Maximum takeoff altitude: 2000 m
- Maximum wind resistance: 12 m/s
- Operating temperature: -20°C to +50°C
COMMUNICATION SYSTEM
- Long-range primary communication link (up to 120 km LOS)
- Advanced encryption (AES256)
- Anti-jamming capability with frequency hopping
- Redundant communication architecture
- Independent secondary communication channel
NAVIGATION AND POSITIONING
- Multi-constellation GNSS (GPS, Galileo, BeiDou, etc.)
- Anti-jamming protection system
- Advanced antenna array for signal resilience
- High-precision navigation in complex environments
FLIGHT CONTROL SYSTEM
HARDWARE AND SAFETY
- Sealed and rugged control unit (IP67)
- Redundant power inputs
- Aerospace-grade reliability standards
- High operational reliability
INTEGRATED SENSORS
- Multiple barometers
- Redundant gyroscopes and accelerometers
- Magnetometers
- Airspeed sensor (pitot tube)
- Internal temperature sensors
ADVANCED FEATURES
- Sense & avoid capability (air traffic awareness)
- Integrated digital terrain models
- Real-time mission editing
- Simulation environment for training (HIL)
- Real-time telemetry and command
OPERATION MODES
OPERATION MODES
- Automatic waypoint navigation
- Loiter (circular flight mode)
- Guided navigation to coordinates
- Assisted manual flight
- Return-to-home function
- Camera-based navigation
OPERATIONAL SAFETY
- Automatic system diagnostics
- Pre-flight and post-flight checklists
- Multiple failsafe procedures
- Automatic return in case of signal loss, low fuel, or system failure
- Glide capability in case of engine failure
PAYLOAD AND SENSOR SYSTEM
GIMBAL-INTEGRATED SENSORS
- High-resolution EO (visible) camera
- Thermal infrared camera (MWIR)
- Laser range finder
- Laser pointer
OPERATIONAL CAPABILITIES
- Day and night target identification
- Automatic target tracking
- Real-time GPS coordinate calculation
- Advanced moving target indication
- Optical zoom (EO/IR)
- Video recording and image capture
- Picture-in-picture (PiP) functionality
DETECTION CAPABILITIES
- Long-range target detection
- Progressive recognition and identification capabilities
- Effective operation in low-visibility conditions
ADDITIONAL EQUIPMENT
- LiDAR-assisted takeoff and landing system
- Air traffic monitoring system (ADS-B)
- Navigation lights and beacon
- Rugged transportation cases
- Maintenance and support tools
GROUND CONTROL STATION
- Portable rugged control station
- Intuitive user interface
- High-brightness display
- Full connectivity (Ethernet, USB, wireless)
- Integrated mission planning and control
ANTENNA TRACKING SYSTEM
- Automatic UAV tracking system
- Continuous 360° movement
- Precision orientation control
- High-performance antennas for long-range communication
OPERATIONAL SUPPORT AND SERVICES
To ensure optimal system performance, support frameworks may include:
- Technical and operational training programs
- Operator and maintenance training
- Deployment and implementation support
Additionally, complementary solutions may be made available if required, including spare parts availability and comprehensive insurance coverage, further enhancing operational continuity and protecting your investment.
MAIN APPLICATIONS
- Strategic surveillance and security
- Border patrol (land and maritime)
- Search and rescue operations
- Critical infrastructure monitoring
Tactical and intelligence operations
